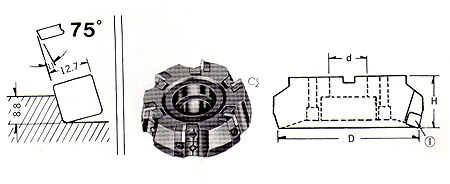

| CODIGO | Referencia | D mm | H mm | d Pulgadas | d
mm |
Cantidad de Insertos |
| C228.00 | STP4080 R/L | 80 | 50 | 1" | 27 | 5 |
| C228.01 | STP4100 R/L | 100 | 55 | 1-1/4" | 32 | 6 |
| C228.02 | STP4125 R/L | 125 | 55 | 1-1/2" | 40 | 8 |
| C228.03 | STP4160 R/L | 160 | 60 | 2" | 40 | 10 |
| C228.04 | STP4200 R/L | 200 | 60 | 1-7/8" | 60 | 14 |
| C228.05 | STP4250 R/L | 250 | 65 | 1-7/8" | 60 | 16 |
| C228.06 | STP4315 R/L | 315 | 65 | 1/7/8" | 60 | 18 |
| C228.06 | STP4360 R/L | 360 | 65 | 1/7/8" | 60 | 20 |
| CODIGO | Referencia | D mm | H mm | d mm | Cantidad de Insertos |
| C222.00 | SPC4050 | 50 | 45 | 22 | 3 |
| C222.01 | SPC4063 | 63 | 45 | 27 | 4 |
| C222.02 | SPC4075 | 75 | 45 | 27 | 5 |
| C222.03 | SPC4100 | 100 | 49 | 32 | 6 |
Repuestos
|
C281.02
|
C284.03
|
-
|
C283.07
|
